What we supply

Every profile, from catalogue to custom die.

Four supply lines, three alloy families, and finishes to spec. Stock shapes ship from catalogue; drawing-driven work runs on dedicated dies. Pick a category to see typical profiles, alloys, tolerances, and what to send us.

Standards & Compliance
  • ISO 9001 partner plants
  • ASTM B221 / EN 755 conformance
  • Mill test certificates per lot
  • Export documentation handled
01 / Architectural

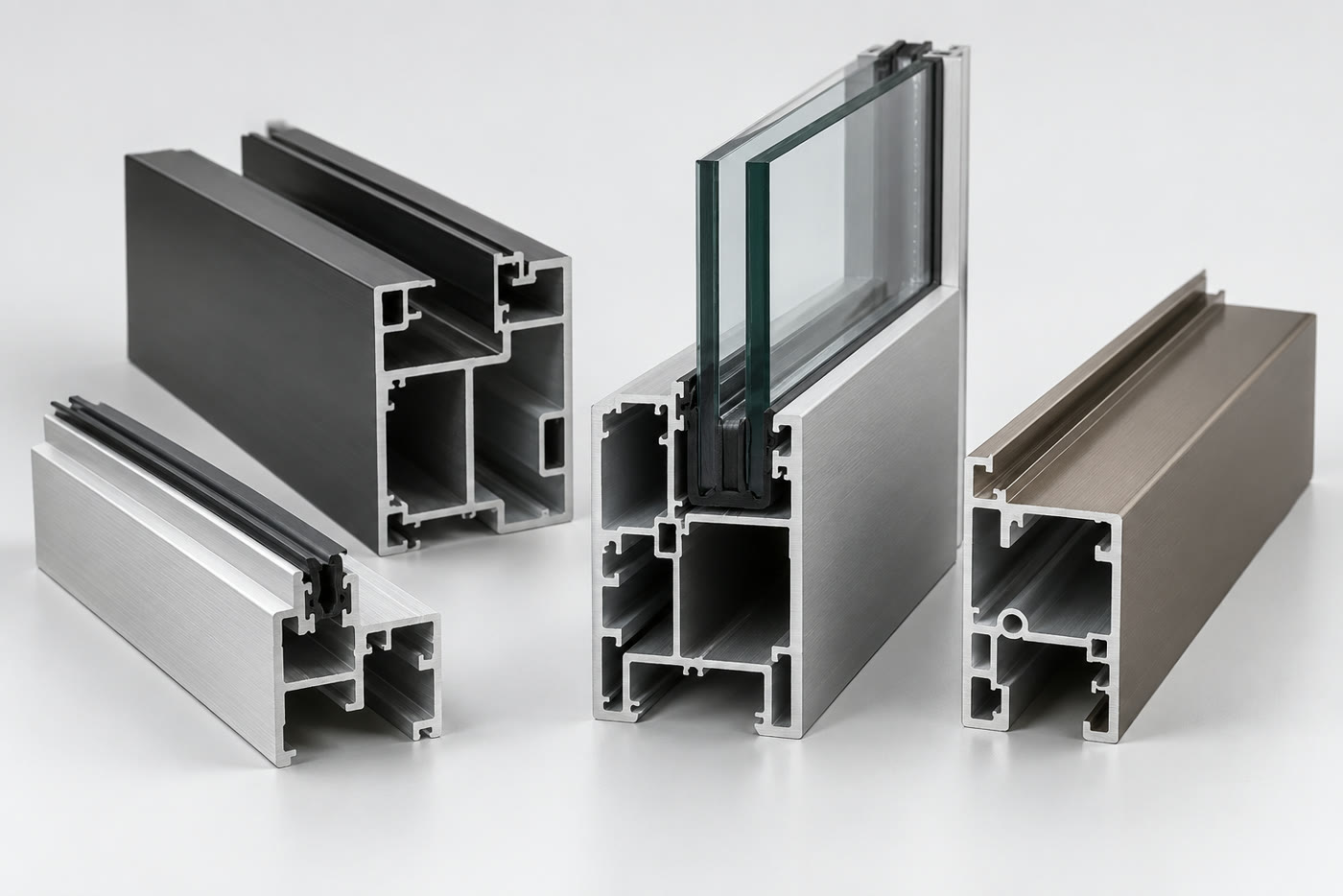

Aluminium curtain-wall and window profiles in mill, anodised and bronze finishes, cut ends showing glazing pockets, gasket races and screw ports, with insulated glass seated in one section.

Architectural profiles

Windows, doors, curtain-wall mullions and transoms, and façade systems — with glazing pockets, thermal breaks, and gasket races.

View details →
02 / Industrial

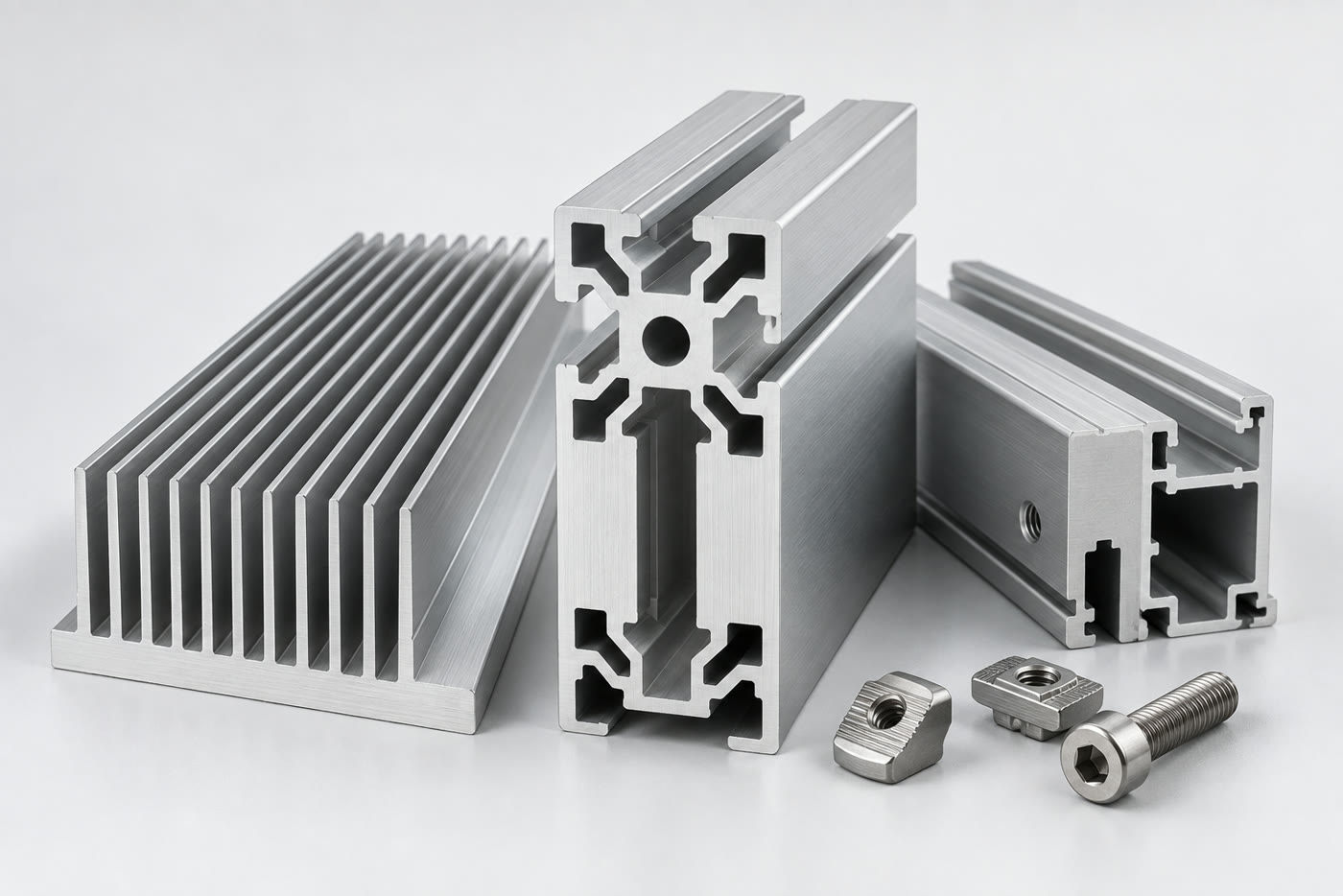

Finned aluminium heat sink, a 40 by 40 mm T-slot framing extrusion and a rack profile with a tapped hole, alongside T-slot nuts and a hex-socket bolt.

Industrial extrusions

T-slot framing for jigs and guarding, extruded heat sinks, and machine enclosures — cut, tapped, and machined to drawing.

View details →
03 / Custom

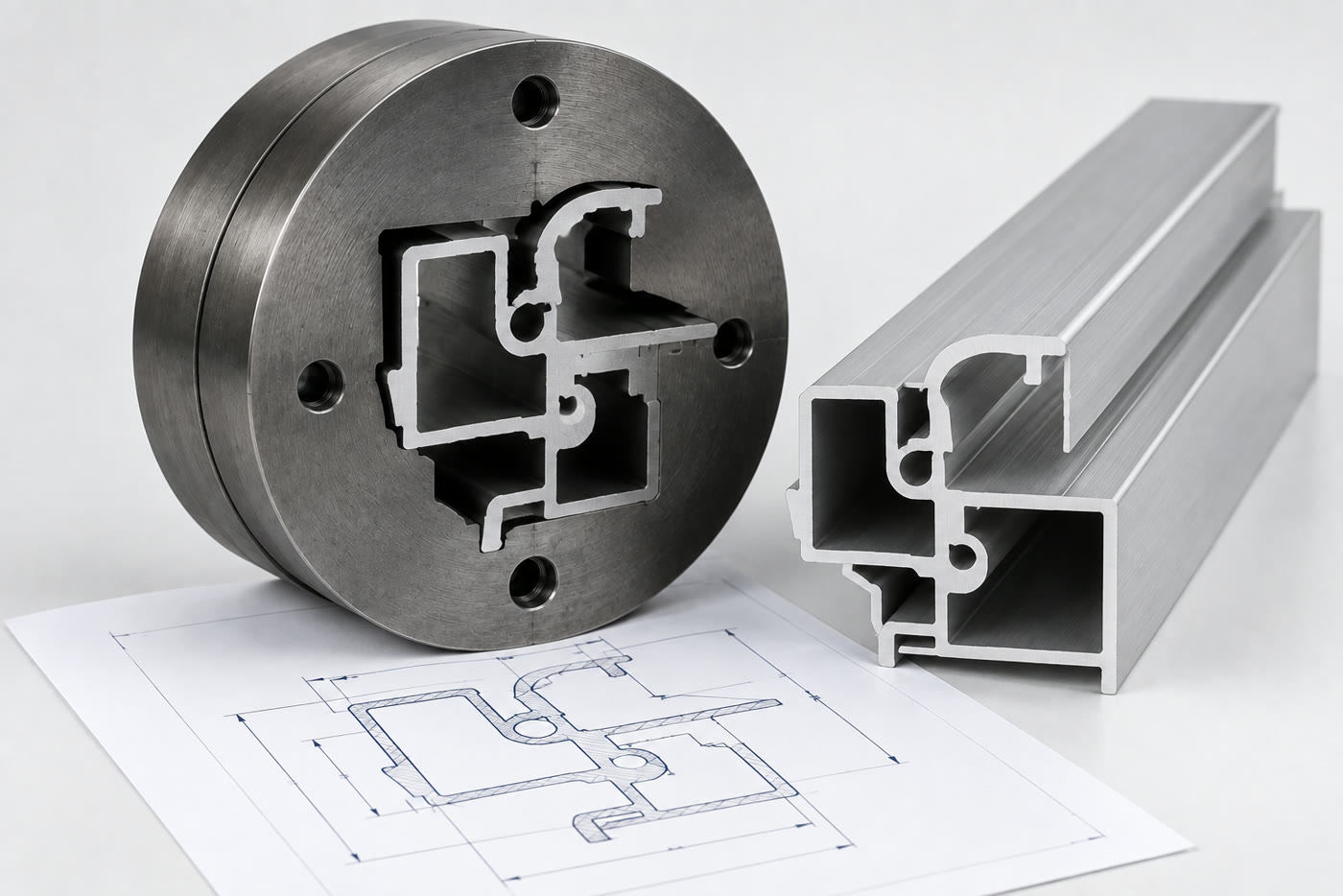

Round hardened steel extrusion die with a bespoke profile-shaped aperture, the matching aluminium extrusion beside it, resting on a dimensioned cross-section drawing.

Custom die development

DWG / DXF / STEP to die design, sampling, and production. We manage die correction and first-article approval before the run.

View details →
04 / Standard

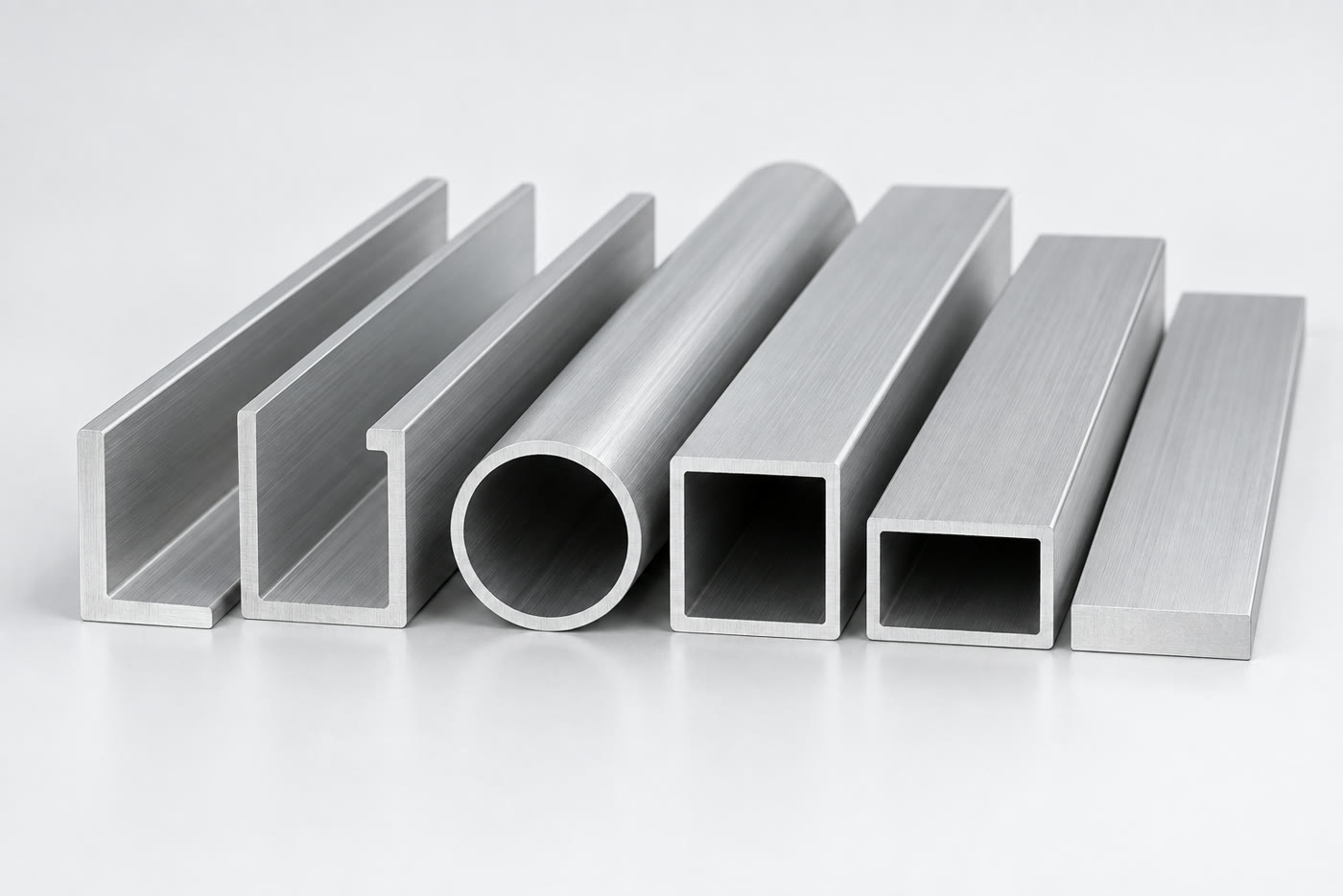

Row of mill-finish aluminium stock sections — angle, channel, round tube, square tube, rectangular tube and flat bar — with all cut ends facing the camera.

Standard shapes

Angles, channels, round and square tubes, and flat bars in common sizes — 6061 / 6063 / 6082, quoted from catalogue.

View details →
Reference

Alloys & tempers we supply.

The 6000 series covers most architectural and industrial work. Temper and finish are matched to the application — tell us the use and we'll confirm the spec.

6000-series — typical use
AlloyCommon tempersTypical useNotes
6063T5 / T6Architectural profiles, curtain wall, general extrusionBest surface finish; ideal for anodising
6061T6 / T651Structural & machined parts, industrial framingHigher strength; good machinability
6082T6Load-bearing structural sectionsHigh strength in the 6000 series
6060T5 / T6Fine architectural detailing, thin wallsExcellent extrudability
Finishes

Mill, anodised, or coated.

Specify a finish or describe the environment — coastal, interior, high-traffic — and we'll recommend a coating and thickness that holds up.

Mill finish Anodised — clear Anodised — colour Powder-coated (RAL) Wood-grain sublimation Brushed / matte PVDF (architectural) Mechanical polish

Anodising to 10–25 µm, powder coat to 60–120 µm, matched to RAL or a supplied swatch.

Request a quote

Have a profile in mind? Send the spec.

Request a Quote → See how we work →
